Each project has an FMEA structure that will be the same for all FMEAs and RCMs in the project.

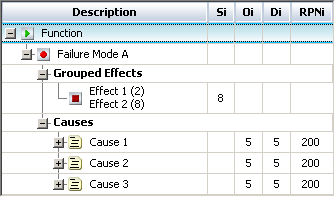

Grouped Effects and Causes (commonly used for FMEA)
The effects will be entered as separate records but displayed together in the FMEA; the software calculates RPNs based on the highest severity rating.

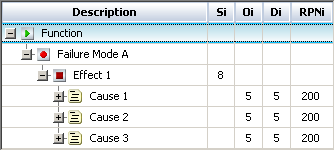

Effects Before Causes (can be used for FMEA or RCM)

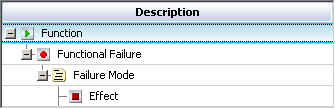

Causes Before Effects (sometimes used for RCM)
Each project also has its own configurable settings that enable you to customize:
Data fields and names
Classifications, categories and other drop-down lists
Rating scales and preferences for FMEA risk priority metrics
Logic for risk discovery and RCM decision charts
Use the Select Profile from Library option in the project properties to quickly apply a predefined group of settings.
