Standard Report Forms

The following forms can be included in reports.

General
- Report Summary presents a list of the report forms that are included in the main report.
- Rating Criteria and Classifications presents the calculation method, rating criteria and classification options used in the analysis.
- Analysis Plans Summary presents full information for each analysis plan.
- Analysis Plan Details (One per Item) presents the details for each analysis plan associated with one of the selected items.
Items
- Items Summary presents the hierarchy for the items selected to be included in the report in addition to a full summary of the properties for each item. If more than one item has been selected that is the top selected item in a branch of the hierarchy, the hierarchy for the first top-level item will be displayed followed by the summaries for the item and any sub-items, then the hierarchy for the second top-level item will be displayed, and so forth.
- Items Integrated Documents includes any integrated documents attached to each item. Integrated documents are attached via the Attachments window. This option is available only for reports generated in Microsoft Word.
Risk Discovery
- Risk Discovery Logic presents the risk discovery questions and ratings used in the analysis.
- Risk Discovery Summary (with Questions) presents the answers given to questions in the risk discovery analysis, if any.
- Risk Discovery Summary (with Ratings) presents the risk discovery ratings specified in the risk discovery analysis, if any.
- Risk Discovery Details (One per Item) presents a separate report for each selected item showing the answers given to the risk discovery questions and the risk discovery ratings specified in the risk discovery analysis.
PFD Spreadsheet
- PFD Standard presents planning for design data, if any, in the traditional tabular format. As discussed in Sub-Item Data Combined or Separated, the number of separate forms generated will depend on the items selected at the top of the window. Of course, reports will be generated only for selected items that have an associated PFD analysis.
PFD Records: There are no standard report forms for PFD records. This category may contain any custom report templates and/or any custom queries that you have created that relate to PFD records.
FMEA Spreadsheet presents the FMEA data in the traditional tabular format. The number of separate forms generated will depend on the items selected in the Select Items area. The following styles are available:
- FMEA Standard creates an FMEA spreadsheet that includes information from the most basic elements of most FMEA analyses. This is a very basic style and should only be used when you are not required to meet published guidelines for the current profile.
- AIAG Form A through AIAG Form E create FMEA spreadsheets that are consistent with the examples published in the Automotive Industry Action Group (AIAG) guidelines.
- J1739 (2002) and J1739 (2009) create FMEA spreadsheets that are consistent with the examples published in the 2002 and 2009 revisions of the Society of Automotive Engineers (SAE) guidelines.
- MIL-STD-1629A creates an FMEA spreadsheet that is consistent with the example published in the military standard.
- VDA-86 and VDA-96 create FMEA spreadsheets that are consistent with the examples published in the VDA Volume 4 guidelines used by the German automotive industry.

Note: The application will not prevent you from, for example, performing the analysis with the J1739 interface style and then generating the FMEA Spreadsheet in the MIL-STD-1629A style. Although this may result in some inconsistencies in the reports, it will provide you with maximum flexibility to customize the report to meet your particular needs.

FMEA Records
- VDA Action Tracking presents an actions summary report that has been configured to match the "Action Tracking" template in the VDA Volume 4 guidelines used by the German automotive industry.
- Action Details (One per Action) presents a separate report for each action that has been defined for the selected items. If this report form is selected for inclusion in the generated report, the Select Actions for Detail Report window will appear when you click Generate Report.

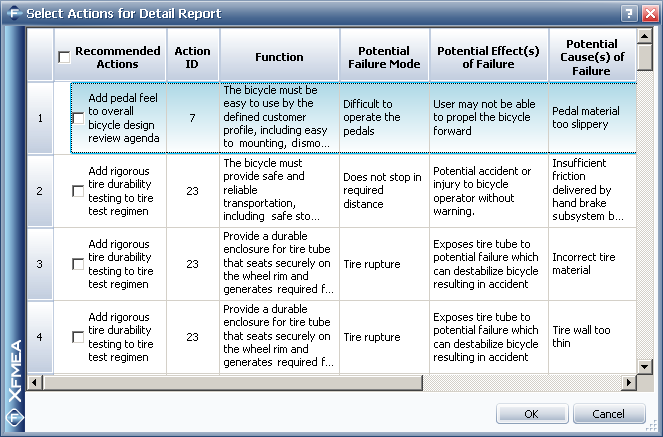

This window presents a list of all actions associated with the selected items. Select the actions for which you want to see a detailed report. You can select or clear all of the actions by selecting/clearing the check box in the column header. You can sort this list by any column by clicking the column header.

- Functions, Failures, Effects, Causes, Controls and Actions are report templates that were created by ReliaSoft and saved in the default Standard templates file, XRUT.xrt8, which is located by default in C:\Documents and Settings\username\My Documents\ReliaSoft\Common. These templates will be available only if the default Standard templates file is selected in the Templates Manager.
Criticality
- Criticality Analysis (Standard) presents the quantitative criticality analysis in a tabular format that is based on MIL-STD-1629A but includes some modifications to the header information and uses customized column headings.
- Criticality Analysis (MIL-STD Quantitative) presents the quantitative criticality analysis in a tabular format that is based more closely on MIL-STD-1629A.
- Criticality Matrix (MIL-STD Quantitative) presents the quantitative criticality analysis matrix, as defined in MIL-STD-1629A with Severity Classification on the horizontal axis and Mode Criticality on the vertical axis.
- Criticality Analysis (MIL-STD Qualitative) presents the qualitative criticality analysis in a tabular format that is based on MIL-STD-1629A.
- Criticality Matrix (MIL-STD Qualitative) presents the qualitative criticality analysis matrix, as defined in MIL-STD-1629A with Severity Classification on the horizontal axis and Failure Probability on the vertical axis.
- Criticality Ranks presents the items and failure modes, ranked by item criticality and then by mode criticality.

What’s Changed? In previous versions, Criticality Analysis reports were run using the Criticality Analysis window.

Control Plan Spreadsheet
- Control Plan Standard presents control plan data, if any, in the traditional tabular format. As discussed in Sub-Item Data Combined or Separated, the number of separate forms generated will depend on the items selected at the top of the window. Of course, reports will be generated only for selected items that have an associated control plan analysis.
Control Plan Records: There are no standard report forms for control plan records. This category may contain any custom report templates and/or any custom queries that you have created that relate to control plan records.
DVP&R Spreadsheet
- DVP&R Standard presents design verification plan data, if any, in the traditional tabular format. As discussed in Sub-Item Data Combined or Separated, the number of separate forms generated will depend on the items selected at the top of the window. Of course, reports will be generated only for selected items that have an associated DVP&R analysis.
DVP&R Records: There are no standard report forms for DVP&R records. This category may contain any custom report templates and/or any custom queries that you have created that relate to DVP&R records.
DRBFM Spreadsheet
- DRBFM Standard presents design review based on failure mode analysis data, if any, in the traditional tabular format. As discussed in Sub-Item Data Combined or Separated, the number of separate forms generated will depend on the items selected at the top of the window. Of course, reports will be generated only for selected items that have an associated DRBFM analysis.
DRBFM Records: There are no standard report forms for DRBFM records. This category may contain any custom report templates and/or any custom queries that you have created that relate to DRBFM records.
