FMEA Stats Grid Tile

The FMEA Stats Grid allows you to monitor selected stats for multiple FMEAs in a project within a single tile. It offers the same stats that are available in the FMEA Stats tile (except for "Risk Profile with Actions") but breaks them down by individual FMEA.

All FMEAs Combined

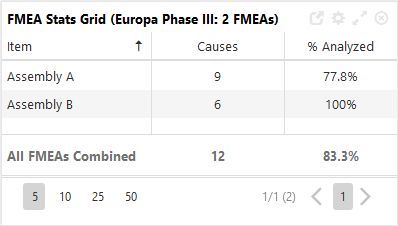

The row at the bottom of the grid shows the stats for All FMEAs Combined. Note that these combined stats consider unique records (see FMEA Stats tile). If the same resources and/or linked FMEAs appear multiple times within the combined data set, the values in this row will differ from the sum of the stats for the individual FMEAs. For example, in the grid shown below, “Assembly A” and “Assembly B” each include three causes from the same linked FMEA. Since these causes are counted only once, the value shown for the combined data set is 12, not 15.

Note: For this tile, you must specify the order of the columns in the Settings dialog box.

% Reduction in RPN

If you choose to display % Reduction in RPN, the tile will include three columns — Total Initial RPN, Total Current RPN and % Reduction in RPN — assuming both the initial and revised RPN options have been enabled for the project. Dashes appear in grid cells in cases where no value has been assigned or when the % reduction cannot be calculated. See % Reduction in Total RPN in the FMEA Stats tile topic for more information about this stat.

Risk Profile

If you choose to display Risk Profile (Revised / Current), you can enable the Show trend option to show the changes from the initial risk rankings in the All FMEAs Combined row. (See Risk Profiles — Initial and Revised / Current in the FMEA Stats Tile topic for more information.)
