Publishing to SEP

The Synthesis Enterprise Portal website does not display all of the analyses that were performed in ReliaSoft desktop applications. Instead, your team can decide which analyses to make available via the web, and publish selected analysis summaries and reports.

These features are only available when:

ReliaSoft Application

What can be published

Weibull++/ALTA
  • Life Data

  • Non-Parametric LDA

  • Life-Stress Data

  • Weibull Degradation

  • ALTA Degradation

  • Parametric RDA

  • Standard Design, Robust Design, Mixture Design, Free Form Design

  • One Way ANOVA

  • Linearity & Bias, Gage R&R, Gage Agreement

  • Multiple Linear Regression

  • Synthesis Workbook

RGA
  • Growth Data

  • Synthesis Workbook

BlockSim/RENO
  • Analytical RBD, Simulation RBD

  • Analytical Fault Tree, Simulation RBD

  • Phase Diagram

  • RENO Flowchart

  • Continuous Markov, Discrete Markov

  • Synthesis Workbooks

Lambda Predict
  • Reports

  • Stored Plots

XFMEA, RCM++ and RBI
  • Reports (saved with the project)

  • System hierarchy and FMEAs are also visible on the website — no publishing required



Note: If you have published analysis summaries and you get a "Link is not properly formatted" message when you attempt to open the original analysis from SEP, the link may be corrupted or is using old encryption. Republish the analysis to refresh the link.

Data Sheets or Diagrams

To publish an analysis summary from Weibull++/ALTA, RGA or BlockSim/RENO, open the data sheet or diagram and click Publish SEP Summary on the Publishing page of the control panel. (For DOE design folios, the "Data" tab with analyzed response data must be selected.)

For data sheets, this displays a preview of the spreadsheet summary. Click Publish SEP Summary again to complete the process.

After publishing, the panel displays "Synchronized" if the web version reflects the latest results from the analysis. If the analysis has been modified (e.g., if more data has been added, an analysis setting has changed, etc.), it displays "Out of Sync" and you will need to recalculate and republish to update the website.

To remove the summary from the website, click Remove SEP Summary.

Synthesis Workbooks

To publish a Synthesis Workbook from Weibull++/ALTA, RGA or BlockSim/RENO, open the module in the workbook that you want to share (spreadsheet or word processing document), then click Home > SEP > Publish Report.

The status bar indicates that the spreadsheet or document is visible via the SEP website, and when the web version was last updated.

If you subsequently make a change in the desktop application, you will need to republish to update the website.

If you want to remove the report from the website, open the module and click Home > SEP > Remove Report.

Prediction Reports and Plots

To publish a report for a standard item or block in Lambda Predict, select the item/block and choose Prediction Tools > Share > Publish SEP Summary.

In the Select Report window, select what to include in the report (e.g., template-based reports, default reports or plots) and click OK. (See Lambda Predict Reports in the Lambda Predict documentation.) There can be only one published report for each item/block. If you publish again for the same item, it will replace the report that was previously published.

To publish a stored plot from Lambda Predict, open the plot, then click the Publish SEP Summary icon on the Publishing page of the plot control panel.

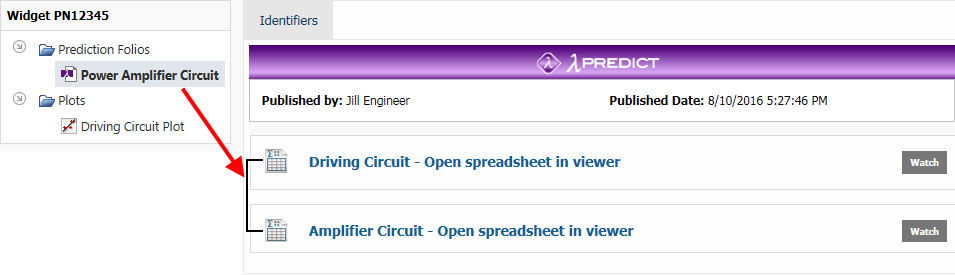

The following example shows two published reports from the Power Amplifier Circuit folio and one published plot.

To remove a report from the website, select the standard item or block, then open the Publishing tab of the Properties panel and click Remove SEP Summary.

To remove a plot from the website, open the plot, then click the Remove SEP Summary icon on the Publishing page of the plot control panel.

XFMEA/RCM++/RBI Reports

To publish a report generated in XFMEA/RCM++/RBI, use the Reports window to build the document, select at least one of the Save/Publish file formats on the ribbon (Word, Excel, or PDF) and click Generate Report.

To see all of the generated report documents that have been saved with the project (and therefore will be visible via SEP), click Published Reports Manager. You can also use the manager to edit the name and description that will show in the website.

For more information, see Save/Publish Reports in the XFMEA/RCM++/RBI documentation.
