This topic describes the find and filter tools that are built in to the Resource Manager and other Synthesis utilities that use a similar grid. Each of these tools can be used separately, or in conjunction with the others.
The Find panel allows you to search for a word or phrase across all of the available properties. When you enter text and click Find, it will:
Show only the rows that contain the text you specified.
Highlight all of the locations where the matching text occurs.
To show this panel, click Show Find Panel.
To stop filtering the data and hide the panel, click the red X (
).
The Auto Filter Row allows you to automatically filter the grid by matching text in one or more columns. For example, the following grid shows only the rows in which the model name contains "Component A" and the distribution contains "Weib."
To display or hide this row, toggle the Show Auto Filter Row command.
The Advanced Filters allow you to choose an automatically generated filter or create a quick custom filter. The automatically generated filters are based on the unique values that currently exist in the column.
For example, the following picture is based on a data set that contains models from three different categories. If you choose one of the automatically generated filters (e.g., "Reliability"), the grid will display only models of that one selected category.
If you want to see models from two of those categories (e.g., either "Reliability" or "Probability of Failure"), you can choose (Custom) and create a quick custom filter like this:
If a filter has been applied for a particular column, select (All) to remove it.
When you are filtering the grid using the Auto Filter Row, Advanced Filters and/or Edit Filter window (described below), the current query criteria will be displayed at the bottom of the window. For example:
Click the X to delete the current set of filter criteria.
Clear the check box to remove the current set of criteria without deleting it. Select the check box if you want to re-apply it.
Click
to choose from a list of filter criteria that were recently applied.
The Edit Filter window provides the most flexibility to refine and adjust a filter in either a grid or a Dashboard layout. To access the tool, click the Edit Filter button to the right of the current query criteria (if applicable), or choose Edit Filter from the shortcut menu.

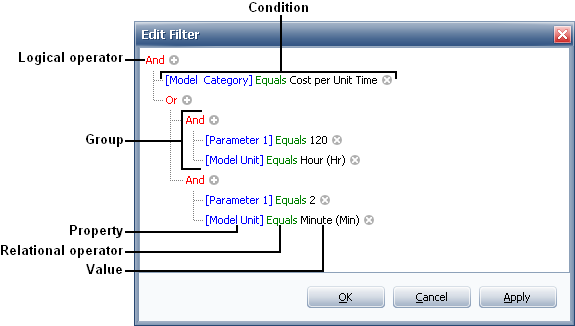

As an example, the following filter from the Resource Manager will display only cost per unit time models in which the rate equals either $120 per hour or $2 per minute.
Click a red label if you want to:
change the logical operator (And, Or, Not And, Not Or)
add or remove a group
add a condition
clear the entire filter
Use the
and
icons to add or remove conditions within an existing group.
Click a blue label if you want to change the property (e.g., Model Name, Created By, etc.).
Click a green label if you want to change the relational operator (e.g., Equals, Contains, Begins with, etc.).
Click a gray or black label if you want to enter or change the value.
