	Zonal and L/HIRF Analysis

Selecting Zonal-L-HIRF Analyses

When you select a Zone in the Zonal-L/HIRF hierarchy, a panel at the bottom of the Properties tab displays the questions that will determine which type(s) of zonal and/or L/HIRF analysis are recommended. This is based on the "Typical Zonal Analysis Procedure" flowchart from the MSG-3 guidelines. Based on your answers, the analysis recommendations are displayed at the bottom of the panel, and the applicable analysis commands will become enabled in the Ribbon.

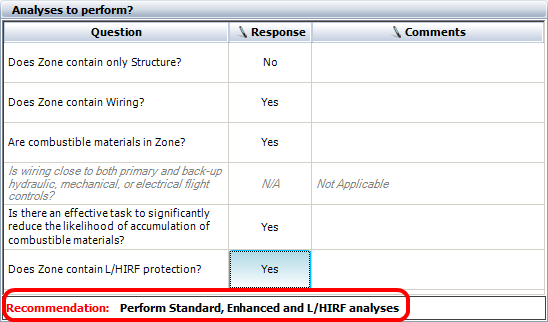

As an example, the following picture shows the responses that will result in a recommendation to perform all three types of zonal-L/HIRF analysis: Standard Zonal, Enhanced Zonal and L/HIRF.

To answer a question, click inside the Response column to toggle between "Yes" and "No."

If desired, you can use the Comments fields to record additional information about the answer selected.
