Growth Data Folio Control Panel

The growth data folio control panel allows you to configure the analysis settings for the data sheet and view/access the results. This topic provides general information that applies to most analyses. For more focused information about performing a particular type of analysis, you can go directly to the topic of interest. (See Traditional Reliability Growth Analysis, Growth Projections, Planning and Management (Crow Extended Model) or Repairable Systems Analysis.)

Control Panel Main Page

The Model area allows you to choose a statistical model to use in analyzing the data set. The list of models available will depend on the data type. See the Data Types topic for a complete list.

The Calculation Options area allows you to choose the Change of Slope analysis method for situations where there has been a significant change in the failure intensity of the system. (See Change of Slope Analysis.)

The available analysis settings may vary depending on the data type. The following picture shows an example of the settings that are available for the Failure Times data type. In this example, the settings show the type of data (Developmental – Failure Times), parameter estimation method (MLE), confidence bounds method (Crow), whether a gap interval has been defined in the analysis (No Gap) and whether the failure times are entered as cumulative or non-cumulative (Cumulative).

If a setting is displayed in blue text, you can click the label to switch between the available options. These settings are also available on the Analysis page of the control panel. See Control Panel Analysis Page for a description of all available settings.

The Termination Time field is available when you use the Crow-AMSAA (NHPP) or Crow Extended models with any of the following times-to-failure data types:
- Failure Times
- Grouped Failure Times
- Multiple Systems - Known Operating Times

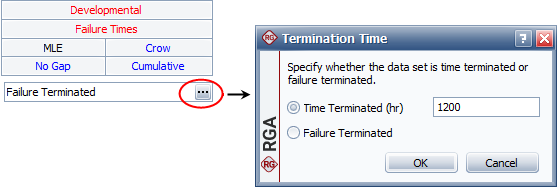

This setting allows you to specify the time when the observation period ended, if applicable. Click the (...) button to open the Termination Time window, as shown next. Select the Time Terminated option to enter the actual observation time, or select the Failure Terminated option to indicate that the observation period ended with the last failure time recorded in the data sheet.

The Results area displays the calculated parameters and other results. The information shown in this area depends on the current data type and model, as well as your selections on the Growth Data Folios page and Calculations page of the Application Setup. If you are analyzing data from multiple systems, this area may show two sets of results (see Normal and Advanced Systems View).

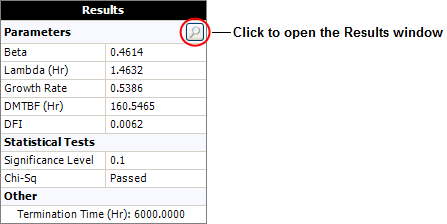

As an example, the following picture shows the analysis results for one particular data set and model. Click the Detailed Summary icon to open the Results window, which shows the results in a worksheet that you can copy or print.

Folio Tools

The folio tools are arranged on the left side of the Main page. Depending on the data type or model used in the analysis, the growth data folio control panel may contain some or all of the following tools:

Calculate estimates the parameters based on the selected model and analysis settings. Once the parameters have been calculated, the Results area will show the current results. This command is also available by choosing Growth Data > Analysis > Calculate.

Plot creates a new sheet in the folio that provides a choice of applicable plot types. This includes plots such as MTBF vs. time, cumulative number of failures, failure intensity vs. time, etc. This command is also available by choosing Growth Data > Analysis > Plot.

QCP opens the Quick Calculation Pad, which allows you to obtain calculated results based on the analyzed data sheet, such as the cumulative MTBF and the expected number of failures. This command is also available by choosing Growth Data > Analysis > QCP.

Effectiveness Factors is available only when you use the Crow Extended or Crow Extended - Continuous Evaluation models. It opens the Effectiveness Factors window, which allows you to define the effectiveness factors for each BD mode to estimate the fractional decrease in failure intensity that can be expected after the delayed fix is applied. This command is also available by choosing Growth Data > Crow Extended > Effectiveness Factors.

Alter Parameters opens a tool that allows you to alter the values of the calculated parameters, assuming that the likelihood function and Fisher Matrix (evaluated at the original parameter estimates) remain the same. In plots, the position of the data points remain the same, but the solution line and all subsequent analyses made via the QCP and other tools are based on the modified parameter values. Therefore, the analysis may be appropriate only within the context of your specific scenario. This command is also available by choosing Growth Data > Options > Alter Parameters.

Switch System View is available only for fielded data and some of the multiple systems data types (Concurrent Operating Times, with Dates and with Event Codes). It allows you to switch between the two complementary views that are available for some multiple systems data types (see Normal and Advanced Systems View). This command is also available by choosing Growth Data > Format & View > Switch Systems View.

Change Units is available for all data types except discrete data. It opens the Change Units window, which allows you to change the units of an existing data sheet.

Auto Group Data is available for data types where the exact failure times have been recorded (i.e., Failure Times and Multi-Phase Failure Times) and for the Fleet data type. It opens the Auto Group Data window, which allows you to specify the intervals that will be used to group the data. This command is also available by choosing Growth Data > Options > Group Data.

Link Mission Profile is available only for the Failure Times data sheet. It applies to cases where testing involves multiple test profiles. This command allows you to select a mission profile in the project that you want to use to analyze the data set. The data in the current data sheet will be transferred to a new data sheet in the same folio, and then grouped according to the "convergence points" in the specified mission profile. (See Mission Profiles.)

Mode Processing is available for data sets analyzed with the Crow Extended or Crow Extended - Continuous Evaluation models. This utility allows you to extract the first failure time for each unique BC mode and/or unique BD mode in a data set. This allows you to automatically copy the failure times for a particular failure mode classification into a new data sheet for separate analysis.

Event Report is available for all multi-phase data types and for the Multiple Systems with Event Codes data type. It opens a report about the failure modes in the current analysis, such as the classification of the modes, their first times to failure and effectiveness factors. This command is also available by choosing Growth Data > Analysis > Event Report. (See Event Reports.)

Batch Auto Run is available only for multi-phase data, fielded data and some of the multiple systems data types (Concurrent Operating Times, with Dates and with Event Codes). It opens the Batch Auto Run window, which allows you to quickly extract data from an existing data sheet based on the system ID, phase or analysis point. This command is also available by choosing Growth Data > Options > Batch Auto Run.

Transfer to New Data Type is available only for fielded data and some of the multiple systems data types (Concurrent Operating Times, with Dates and with Event Codes). It opens the Transfer to New Data Type window, which allows you to select the data type into which you would like to transfer the data. This command is also available by choosing Growth Data > Transfer Life Data > Transfer to New Data Type.

Transfer to Weibull++ is available for time-to-failure data (except Multiple Systems – Known Operating Times), multi-phase data (except Mixed Data) and fielded data. It opens the Transfer to Weibull++ window, which allows you to transfer the current RGA data set to a new life data folio data sheet in Weibull++ (ReliaSoft's life data analysis software). This command is also available by choosing Growth Data > Transfer Life Data > Transfer to Weibull++.
