Universal Reliability Definitions (URDs)

A universal reliability definition (URD) describes a set of reliability and maintenance characteristics for a particular component/assembly. Like any other Synthesis resource, you can create or edit URDs while you're performing a relevant analysis, and from the Resource Manager.

Note: Depending on where you are using a URD, only those properties that are relevant are applied. For example, if you apply a URD to a block in an analytical diagram in BlockSim, only the failure model associated with the URD will be applied to the block.

Naming the Resource

For a new resource, a name will be proposed automatically based on the default naming criteria established for the current database (See Define Default Name Formats window). You can replace this with your own name of up to 150 characters, if desired. Remember that the name and identifiers are the primary way in which your team will be able to find the Synthesis resources you need for your analyses.

Hierarchy Tab

Use the Hierarchy tab to view and/or edit the URD's properties. You can choose or create:

Additionally, the following are shown:



Filtered Tab

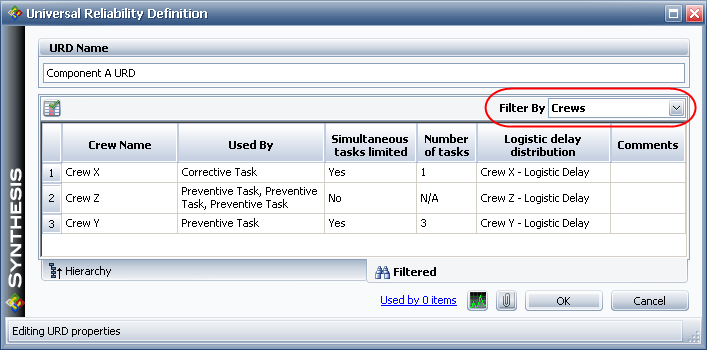

Use the Filtered tab to see the resources that are shown in the Hierarchy tab, filtered by resource type. For example, the following picture shows the crews used in this URD.

Double-click any row to view or edit the properties of the resource.

You can change the columns shown in this view by clicking the Column Chooser icon.

Trace Usage

For an existing resource, a link at the bottom of the properties window indicates how many times it is currently being used. If you need more information, click the link or the Trace Usage icon.

This opens the Dependency Viewer, which allows you to explore both where the resource is being used and what other resources are associated with it.
