Using Time Units in RENO

For each database, authorized users can configure which time units will be available for time-related inputs and results, and they can define conversion factors that allow the software to automatically convert data from one time unit to another (see Manage Units window).

In RENO, this means three things:

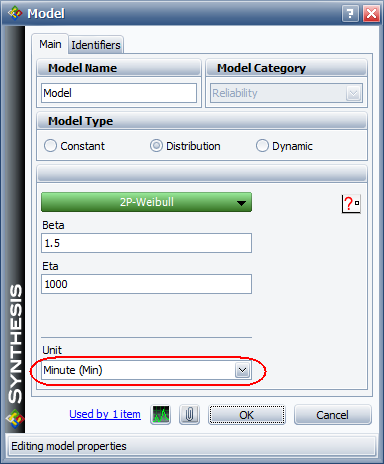

The following flowchart shows a block that obtains a random value from this model.

If rvm(Model) = 60 minutes, then the output of the model in a RENO flowchart would be 1 hour (automatically converted from 60 minutes).

Tip: Whenever you don't want the software to convert the value obtained by RENO from a model resource, make sure the model uses a unit that is defined as equal to 1 SBU. To view the conversion factors for the units, open the Manage Units window by choosing File > Manage Repository > Manage Units.

For an example, you can open the "Snow Blower" project in the RENO9_Examples.rsgz9 database that is installed with the software. In this analysis, the "Depth" model describes snow depth (in inches) and the "Area" model describes the area that needs to be cleared (in square feet). These models use the "Hour" unit, with SBU = 1, to ensure that values obtained from the models do not get converted.
