FMEA Filtered View

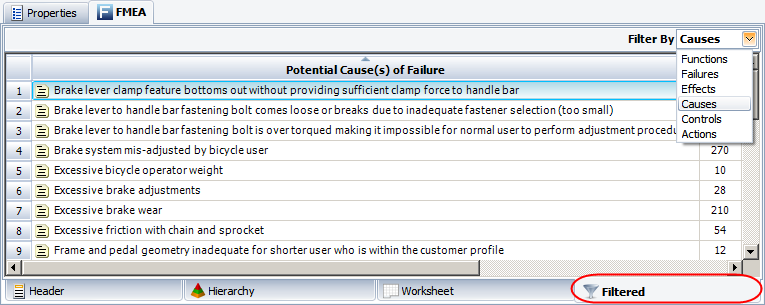

The Filtered tab for an FMEA presents a sortable list of all records of a particular type. For example, you may wish to see all cause records sorted by RPN, or all actions that are overdue. This view allows you to generate these lists on-the-fly as you work on the analysis.

Double-click a row to open its properties window. If you click another row while the properties window is still open, it will automatically update to show the current selection.

You cannot create or delete records from the filtered view.

Filtered View Columns

The columns displayed in the filtered view will depend on the record type and the fields enabled in the project’s interface style. To hide specific columns and/or change the column order, right-click inside any of the column headers and choose Customize Columns. These preferences are stored per computer/username.
