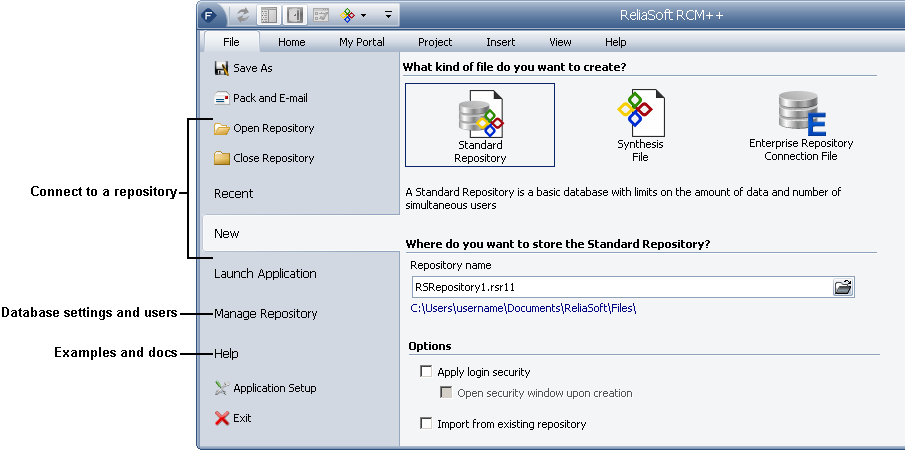

Use commands on the File menu (New, Recent or Open Repository) to create or open a Synthesis repository (database). (See Database Types.)
Each database supports simultaneous access by multiple users. If you have admin permissions, use File > Manage Repository to control user access and manage configurable settings that apply throughout the database. (See Security Options and Backstage View.)
Use File > Help to access online help and shipped examples.
Each database can contain multiple projects. Use the project list to create or open a Synthesis project. (See Project Manager.)

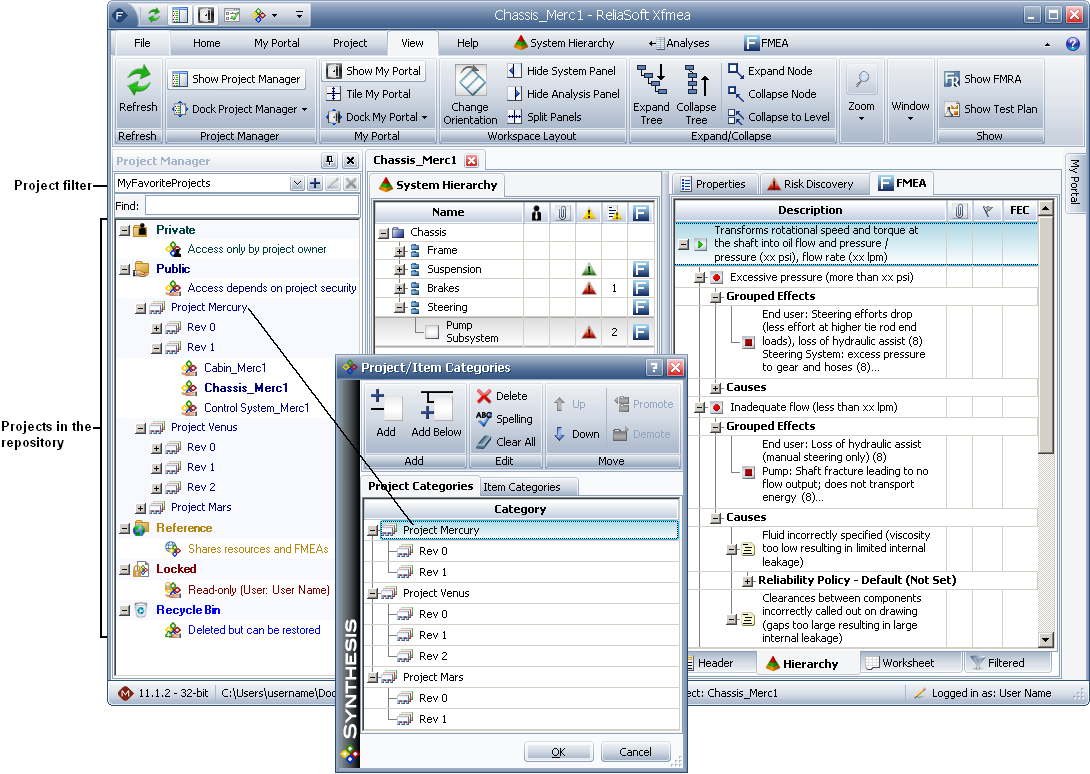

If you have a lot of projects:
Use the project filter to limit what’s displayed.
Use the project category to group projects within the list.

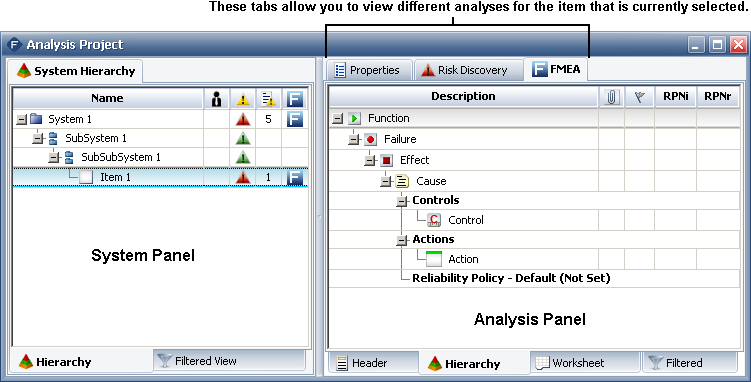

The System panel shows the items that may be analyzed in the project.
It can be a single item or a complex multi-level system configuration.
It can be physical components/equipment or steps in a process.
The Analysis panel shows properties and analyses for the item that is currently selected.
