Publishing to SEP

SEP does not display all of the analyses that were performed in ReliaSoft desktop applications. Instead, your team can decide which analyses to make available and publish selected analysis summaries and reports.

In the desktop applications, these features are only available when:

You are connected to an enterprise database that has an SEP web portal implemented and the "Enable publish to SEP web portal" option is set to "Yes" for the database.
You have the "Publish to SEP web portal" permission.

The types of data and analyses that can be published vary for each ReliaSoft application:

Weibull++/ALTA

Life Data
Non-Parametric LDA
Life-Stress Data
Weibull Degradation
ALTA Degradation
Parametric RDA
Standard / Robust / Mixture / Free Form Design
One Way ANOVA
Linearity & Bias, Gage R&R, Gage Agreement
Multiple Linear Regression
Synthesis Workbooks

XFMEA, RCM++ and RBI*

Reports (saved with the project)

RGA

Growth Data
Synthesis Workbooks

BlockSim/RENO

Analytical RBD, Simulation RBD
Analytical Fault Tree, Simulation RBD
Phase Diagram
RENO Flowchart
Continuous Markov, Discrete Markov
Synthesis Workbooks

Lambda Predict

Reports
Stored Plots

*System hierarchy and FMEAs are also visible in SEP — no publishing is required.

Note: If you have published analysis summaries and you see a "Link is not properly formatted" message when you attempt to open the original analysis from SEP, the link may be corrupted or using old encryption. Republish the analysis to refresh the link.

Data Sheets or Diagrams

To publish an analysis summary from Weibull++/ALTA, RGA or BlockSim/RENO, open the data sheet or diagram and click Publish SEP Summary on the Publishing page of the control panel. (For DOE design folios, the Data tab with analyzed response data must be selected.)

To publish a data sheet, you must also click Publish SEP Summary again in the preview of the spreadsheet summary.

After publishing, the panel displays "Synchronized" if the web version reflects the latest results from the analysis. If the analysis has been modified (e.g., if more data has been added, an analysis setting has changed, etc.), it displays "Out of Sync" and you will need to recalculate and republish to update the web portal.

To remove the summary from the web portal, click Remove SEP Summary.

Synthesis Workbooks

To publish a Synthesis Workbook from Weibull++/ALTA, RGA or BlockSim/RENO, open the module in the workbook that you want to share (spreadsheet or word processing document) and then click Home > SEP > Publish Report.

The status bar shows that the spreadsheet or document is visible via SEP and indicates when the web version was last updated.

If you subsequently make a change in the desktop application, you will need to republish to update the web portal.

If you want to remove the report from the web portal, open the module and click Home > SEP > Remove Report.

Prediction Reports and Plots

To publish a report for a standard item or block in Lambda Predict, select the item/block and choose Prediction Tools > Share > Publish SEP Summary.

In the Select Report window, select what to include in the report (e.g., template-based reports, default reports or plots) and click OK. (See Lambda Predict Reports in the Lambda Predict documentation.) There can be only one published report for each item/block. If you publish again for the same item, it will replace the report that was previously published.

To publish a stored plot from Lambda Predict, open the plot, then click the Publish SEP Summary icon on the Publishing page of the plot control panel.

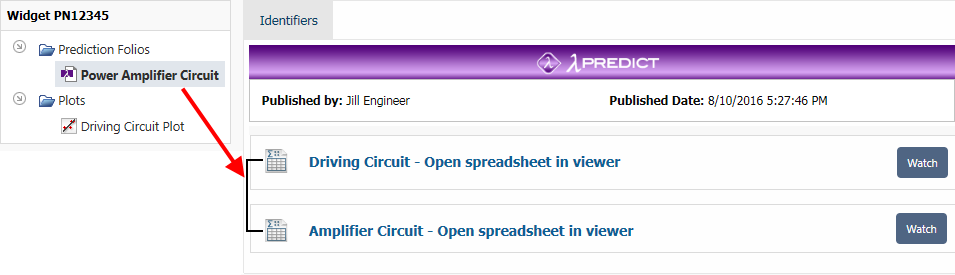

The following example shows two published reports from the Power Amplifier Circuit folio and one published plot.

To remove a report from the web portal, select the standard item or block, then open the Publishing tab of the Properties panel and click Remove SEP Summary.

To remove a plot from the web portal, open the plot, then click the Remove SEP Summary icon on the Publishing page of the plot control panel.

XFMEA/RCM++/RBI Reports

To publish a report generated in XFMEA/RCM++/RBI, use the Reports window to build the document, select at least one of the Save/Publish file formats on the ribbon (Word, Excel, or PDF) and click Generate Report.

To see all of the generated report documents that have been saved with the project (and therefore will be visible via SEP), click Published Reports Manager. You can also use the manager to edit the name and description that will show in the web portal.

For more information, see Save/Publish Reports in the XFMEA/RCM++/RBI documentation.
