Dashboard Viewer

Any user can access the Dashboard Viewer in a variety of locations throughout ReliaSoft desktop applications for graphical presentation of the latest analysis data.

When dashboard functionality is available for the data you’re working with (e.g., Project Planner, Synthesis Explorer, simulation diagrams in BlockSim, etc.), choose Dashboard > Dashboard Viewer to open the viewer.

Select any of the predefined dashboard layouts from the drop-down list to see the latest charts for the current data set.

Resizing Panels

To resize the dashboard items vertically and/or horizontally, click between two items and drag the resize cursor () to the height and/or width you want. This option is available when a dashboard contains multiple items.

Showing Details in Charts and Pies

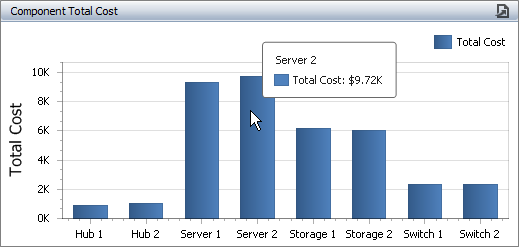

To see more details about the underlying data, move the mouse pointer over a bar or slice. For example, when the pointer is over a bar in a chart, the values for the x and y axes will be displayed in the tooltip.



Drill Downs and Master Filters

For information about how to use charts that have been configured for a drill down, see Viewing Drill Downs. For information about how to use charts that have been configured with master filters, see Using Master Filters.

Sorting and Filtering Data in a Grid

Printing or Exporting the Dashboard

To print the entire dashboard, or export it as a *.pdf file, an image or an Excel file, click the Export To icon.
