When applicable, the plot control panel may display the Target Reliability link or the Target MTBF/FI link. Both give you the option to display markers for target values on the plot.

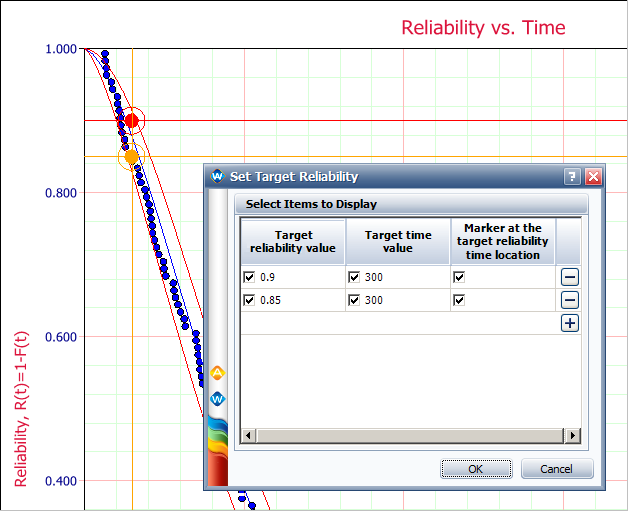

You can select to show a specified target value (displayed as a horizontal line), target time value (displayed as a vertical line), and/or insert a marker at the point where the two target values intersect. Below is an example for a plot that shows the target reliability.
Click the Add
or Remove
icon to manage the list of target values to be displayed. You can add up to 5 sets of target values/markers to a plot.
