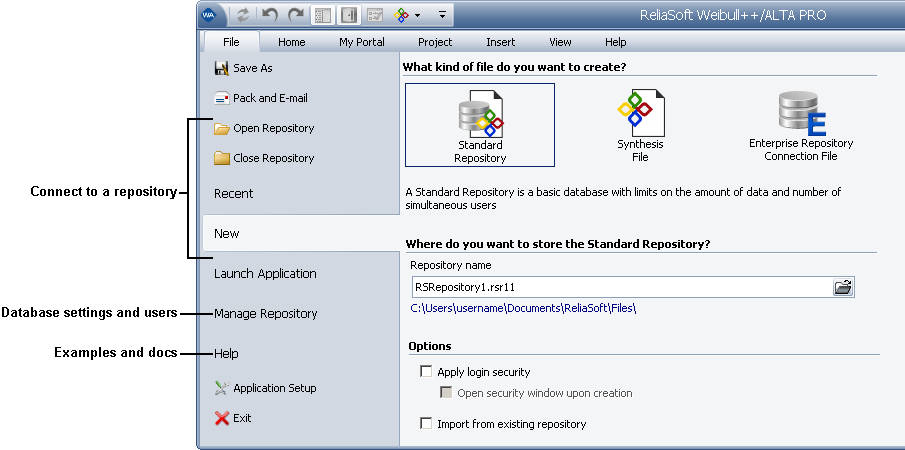

Use commands on the File menu (New, Recent or Open Repository) to create or open a Synthesis repository (database). (See Database Types.)
Each database supports simultaneous access by multiple users. If you have admin permissions, use File > Manage Repository to control user access and manage configurable settings that apply throughout the database. (See Security Options and Backstage View.)
Use File > Help to access online help and shipped examples.

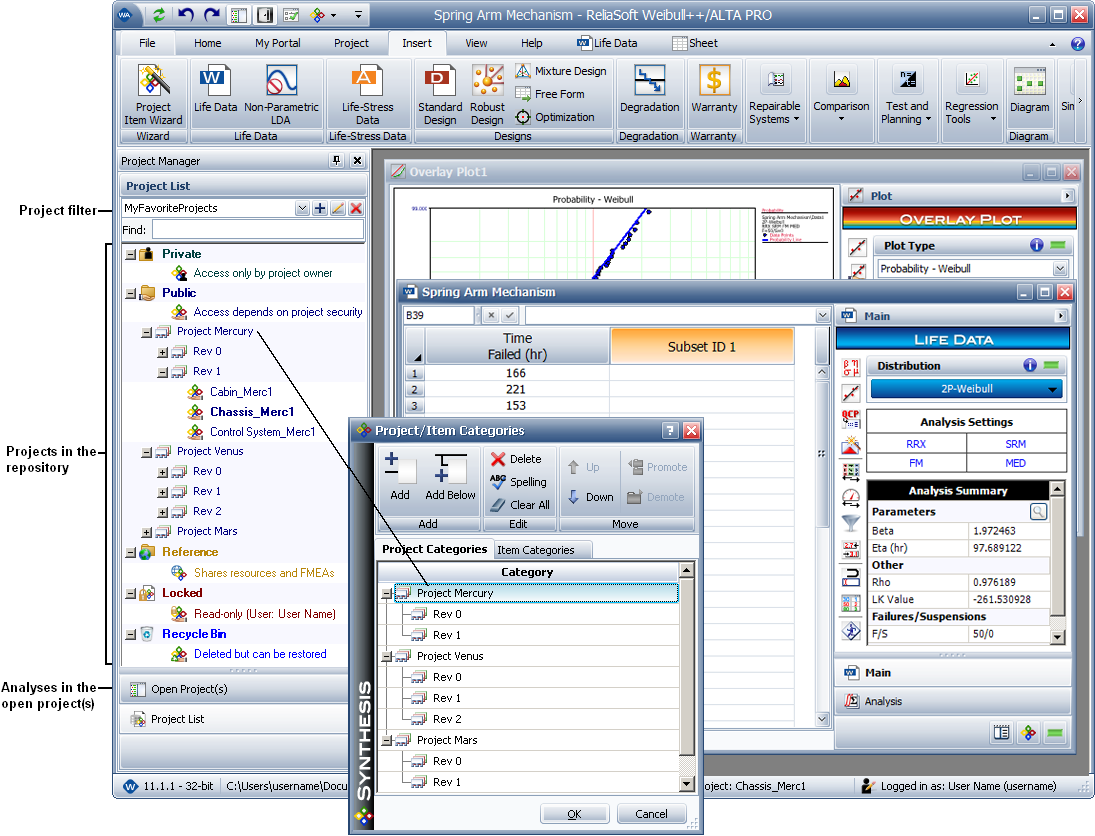

Each database can contain multiple projects. Use the project list to create or open a Synthesis project. (See Project Manager.)
If you have a lot of projects:
Use the project filter to limit what’s displayed.
Use the project category to group projects within the list.
Use the current project explorer to create or open analyses and reports. (See Current Project Explorer.)
You can open the same project in any Synthesis desktop application. Analyses and reports are visible only in the application(s) that can edit them:
Life data folios are only visible in Weibull++
Fault trees are only visible in BlockSim
FMEAs are only visible in Xfmea, RCM++ or RBI
Etc.
Common features such as project plans, Synthesis resources and project attachments are visible in all Synthesis desktop applications.
