In both analysis workbooks and Word reports, saved templates make it easy to reuse the same report multiple times — in different analysis projects and with different data sets.

In addition to the Standard templates that are installed with the software, you can also create your own User templates that are saved from any existing report.

Using a Template to Create a Report

The template must be applied from the wizard that appears when you create a new workbook or Word report. Do the following:

  1. Open the wizard by choosing Insert > Reports and Plots, then select either the Analysis Workbook or Word Report Template.

or

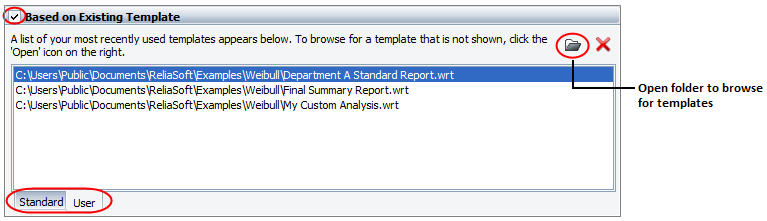

  1. Select the Based on Existing Template check box to enable both of the template tabs:

  1. Select a template from either tab then click OK to create the report.

Saving Your Own Templates

It is easy to create a template from any existing analysis workbook or Word report template that is currently open.

From an analysis workbook, choose Workbook > Actions > Save as Template. From a Word report template, choose Document > Template > Save as Template.

You can name and store the custom templates however you wish. To share a template with other users, you can simply send them a copy of the file, or you can save the file in a shared network location that multiple users can access.

Note that the software automatically appends the appropriate file extension, and each template works only in the application that was used to create it.

Application File Extension
Weibull++/ALTA

.wrt (workbooks)
.rtt (Word reports)

RGA

.rgart (workbooks)
.rtt (Word reports)

BlockSim

.brt (workbooks)
.rtt (Word reports)
