DFR Planner Plot View

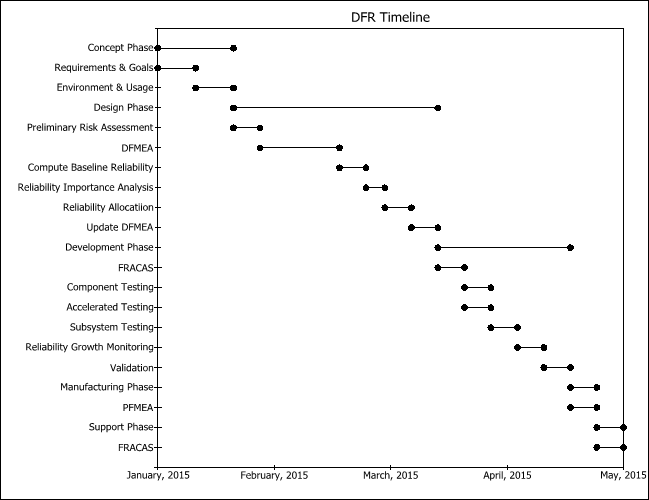

The DFR planner's Plot view displays a timeline of the DFR process (or a specified part of the process) that you defined in the planner's Hierarchy view. An example timeline is shown next.

The generated timeline will represent the part of the DFR process that is specified in the Filter Options area. If you select Gate, the timeline will start and end with the top-level gates you select in the Start Gate and End Gate drop-down lists. If you select Date, the timeline will start and end at the dates you enter in the Start Date and End Date fields.

The Display Options area contains the following options:

Display Actions shows both DFR gates and actions that are linked to those gates.
Auto Refresh automatically refreshes the plot if any changes are made on the control panel.
Keep Aspect Ratio keeps the proportion of horizontal size to vertical size constant when you resize the plot.
Show First Gate on Top shows the first gate in the DFR process at the top of the plot; otherwise the first gate appears at the bottom of the plot.

The control panel of the Plot view also includes some of the options that are available on the Plot Viewer control panel.
